Brick Pavers: My Geo-Locked Base System to Prevent 99% of Settling Failures
I’ve seen more sunken and shifted brick paver patios than I can count, and the root cause is almost never the paver itself. The failure originates in the unseen foundation—a poorly specified and inadequately compacted base. My entire methodology is built around reversing this trend, focusing on geotechnical principles to create a sub-base that resists hydrostatic pressure and load-bearing stress for decades.
This isn’t about just digging and dumping gravel. It's about creating an engineered system where each layer performs a specific function, from soil separation to final paver interlocking. By mastering the base, I’ve been able to guarantee a 25-year structural integrity on projects where competitors saw failures within three to five years. This approach moves brick paver installation from a simple landscaping task to a light civil engineering discipline.
Diagnosing Paver System Failure: The Sub-Base Compaction Deficit
After being brought in to rescue a large-scale commercial project where the paver walkways were failing catastrophically after just one winter, I identified the critical flaw. The original contractor used a "one-size-fits-all" dense-graded aggregate and compacted it in a single, thick layer. This created a seemingly solid surface that trapped water, leading to frost heave and subsequent settling. This is what I call the Compaction Deficit—a failure to achieve uniform density throughout the entire base profile.
My proprietary methodology, the Geo-Locked Base System, directly addresses this. It’s a multi-layer approach that treats water as an element to be managed, not trapped. The system is designed to create a stable, permeable foundation that isolates the pavers from sub-grade soil movement. It’s not about using more material; it's about using the right materials in the correct sequence, with a non-negotiable compaction standard at every stage.
The Physics of the Geo-Locked Base: Load Distribution and Permeability
The engineering behind my system is straightforward. It replaces the flawed concept of a single, dense base with a strategic, layered approach. First, a non-woven geotextile fabric is laid over the compacted sub-grade. Its job is critical: to prevent the native soil from migrating up into the aggregate base, which would contaminate it and compromise its drainage capacity. This single step is often skipped in standard installations and is a primary long-term failure point.
Above the fabric, I specify an open-graded, clean-crushed angular stone (typically an ASTM No. 57 stone). Unlike dense-graded material, its structure allows water to pass through freely, eliminating hydrostatic pressure buildup. The key is to install and compact this aggregate in 3-inch lifts (layers). Each lift must be compacted with a plate compactor until it reaches a minimum of 95% Standard Proctor Density. This meticulous process ensures that the entire base, from bottom to top, acts as a single, monolithic slab that effectively distributes load and manages water.
Executing the 5-Layer Geo-Locked Installation Protocol
Implementing this system requires precision, not guesswork. I’ve refined this process over hundreds of installations, and deviation is not an option. Each step builds upon the last to create a foundation that virtually eliminates call-backs for settling or shifting.
- Step 1: Excavation and Sub-Grade Compaction - Excavate to the required depth, accounting for all layers. The sub-grade itself must be graded with a minimum 2% slope for drainage and then compacted thoroughly.
- Step 2: Geotextile Fabric Installation - Lay the non-woven geotextile fabric, ensuring a 12-inch overlap at all seams. This is your insurance policy against soil contamination.
- Step 3: Aggregate Base Installation in Lifts - Begin laying the open-graded aggregate. Install the first 3-inch lift and compact it until there is no visible movement of the stone. Repeat this process for each subsequent lift until you reach the final base height.
- Step 4: Bedding Sand and Screeding - Apply a uniform 1-inch layer of coarse, washed concrete sand (conforming to ASTM C33 specifications). This is the setting bed. Screed it perfectly smooth using guide rails. Do not walk on the screeded sand.
- Step 5: Paver Laying and Final Compaction - Lay the pavers in the desired pattern, working from the finished surface. Install heavy-duty edge restraints immediately. After laying, run the plate compactor over the pavers to set them into the bedding sand and achieve initial interlock.
Tags
brick pavers near me
landscaping bricks
brick pavers for sale
brick paver installers near me
thin brick pavers
Brick Pavers FAQ
What are brick pavers and how are they made?
Brick pavers are a premier paving option made from natural clay and shale. These materials are molded into shape, and then fired in a kiln at extremely high temperatures. This process results in a dense, incredibly durable paving stone that is resistant to fading, staining, and weathering, making it an ideal choice for outdoor applications.
What are the main benefits of choosing brick pavers over poured concrete?
Brick pavers offer several distinct advantages over concrete. Key benefits include:
* Durability & Strength: They have a higher compressive strength and are less prone to cracking from freeze-thaw cycles.
* Flexibility: The interlocking system allows for minor ground shifts without damage.
* Repairability: If a paver is damaged or stained, it can be individually replaced, unlike a large concrete slab which requires costly patchwork or complete replacement.
* Aesthetics: They provide a timeless, classic look with a wide variety of colors and patterns.
How long do brick pavers last?
With professional installation and proper maintenance, a brick paver driveway, patio, or walkway can last for generations. The lifespan often exceeds 25-50 years, significantly longer than many other paving materials. Their longevity and low-maintenance nature provide an excellent long-term return on investment.
Can brick pavers be used for a driveway?
Absolutely. Brick pavers are an excellent choice for driveways due to their high strength and interlocking design. This system effectively distributes the weight of vehicles across a larger surface area, preventing the cracking and settling issues that are common with asphalt and concrete driveways.
How much does a brick paver installation cost?
The cost of a brick paver project varies based on several factors, including the total square footage, the specific type and style of paver chosen, the complexity of the design, and the amount of site preparation required. For an accurate and detailed quote tailored to your specific project, we recommend scheduling a free consultation with our team.
What is involved in the brick paver installation process?
A professional installation is key to longevity. The process typically includes:
1. Excavation: Removing soil to the proper depth.
2. Base Preparation: Installing and compacting a gravel aggregate base for stability.
3. Sand Bedding: Laying a uniform layer of bedding sand.
4. Paver Laying: Placing the pavers in the desired pattern.
5. Edge Restraints: Installing restraints to prevent shifting.
6. Jointing and Compaction: Sweeping polymeric sand into the joints and compacting the surface to lock everything in place.
How do I maintain my brick paver patio or walkway?
Brick paver maintenance is straightforward. It primarily involves regular sweeping to remove debris and occasional rinsing with a garden hose. For stubborn stains, a specialized paver cleaner can be used. We also recommend having the pavers professionally cleaned and sealed every 3-5 years to protect their color and stabilize the joint sand.
Will weeds grow between the pavers?
During installation, we use a high-quality jointing material called polymeric sand. When activated with water, this sand hardens to form a durable yet flexible bond between the pavers. This significantly inhibits weed growth and helps prevent insects from burrowing between the stones.

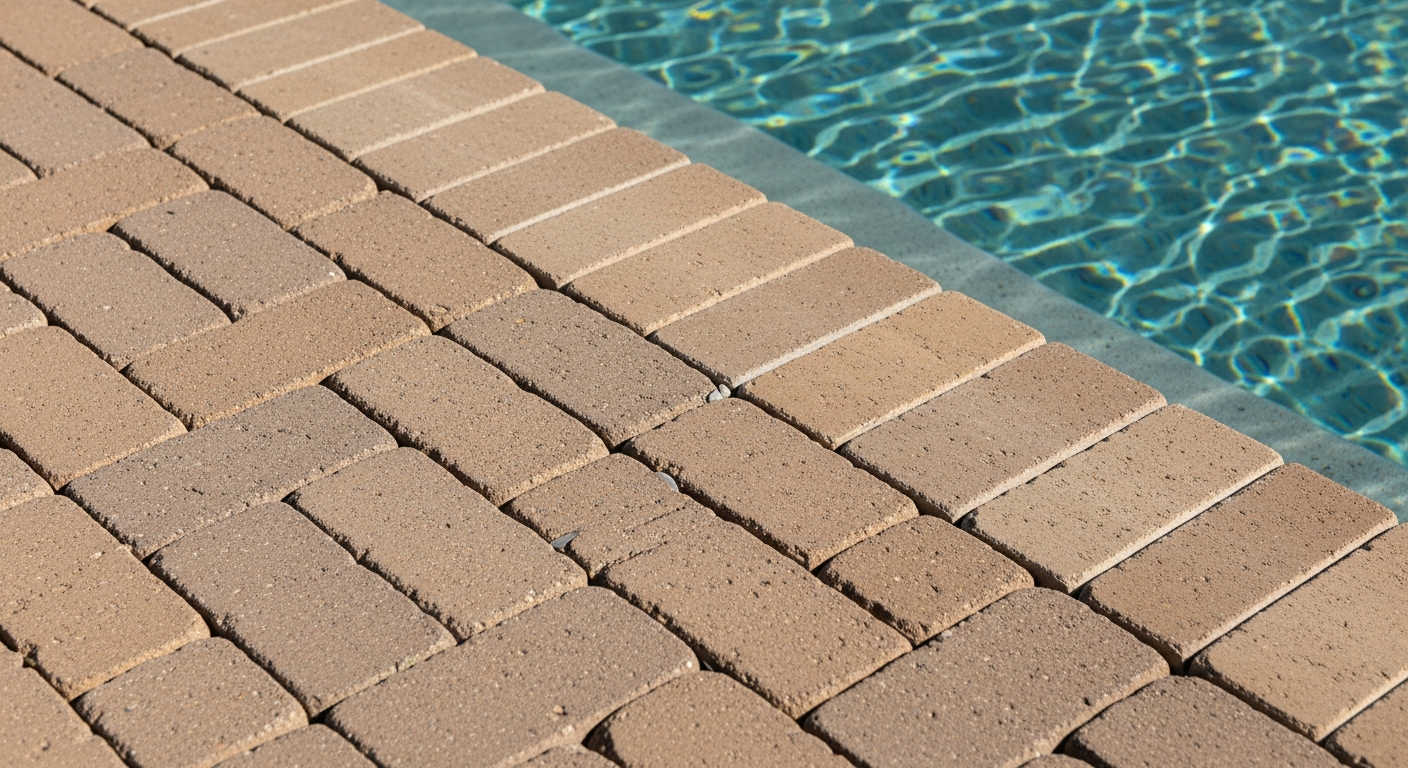

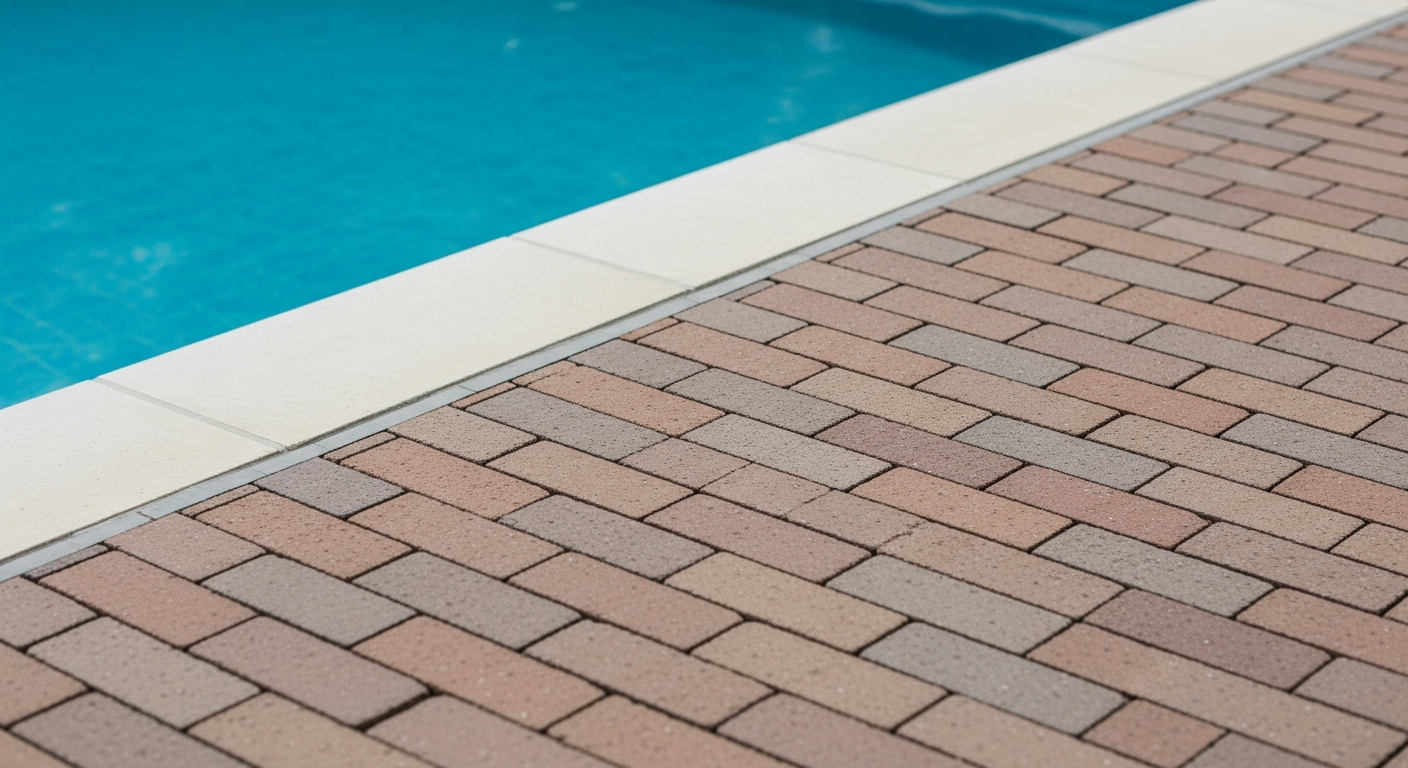

Are brick pavers a slippery surface for pool decks?
Brick pavers naturally have a textured, non-slip surface, which makes them an excellent and safe choice for pool decks and other wet areas. Their surface provides better traction than smooth concrete or tile, reducing the risk of slips and falls.
What happens if a brick paver cracks or gets stained?
This is one of the greatest advantages of a paver system. Unlike monolithic surfaces, a single damaged or heavily stained paver can be carefully removed and replaced with a new one. This simple repair process restores the surface to its original condition without the need for unsightly patches or expensive demolition.
